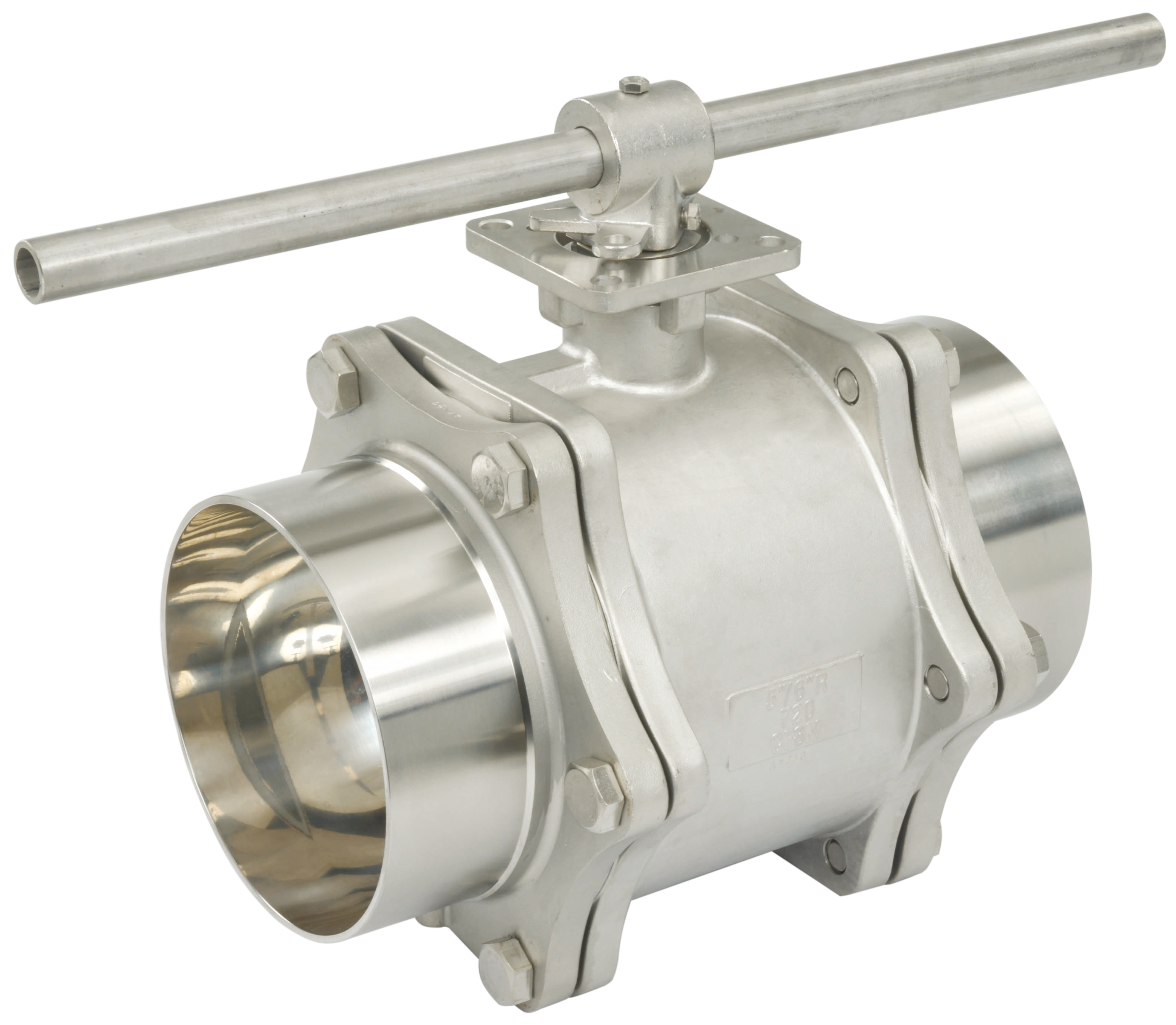

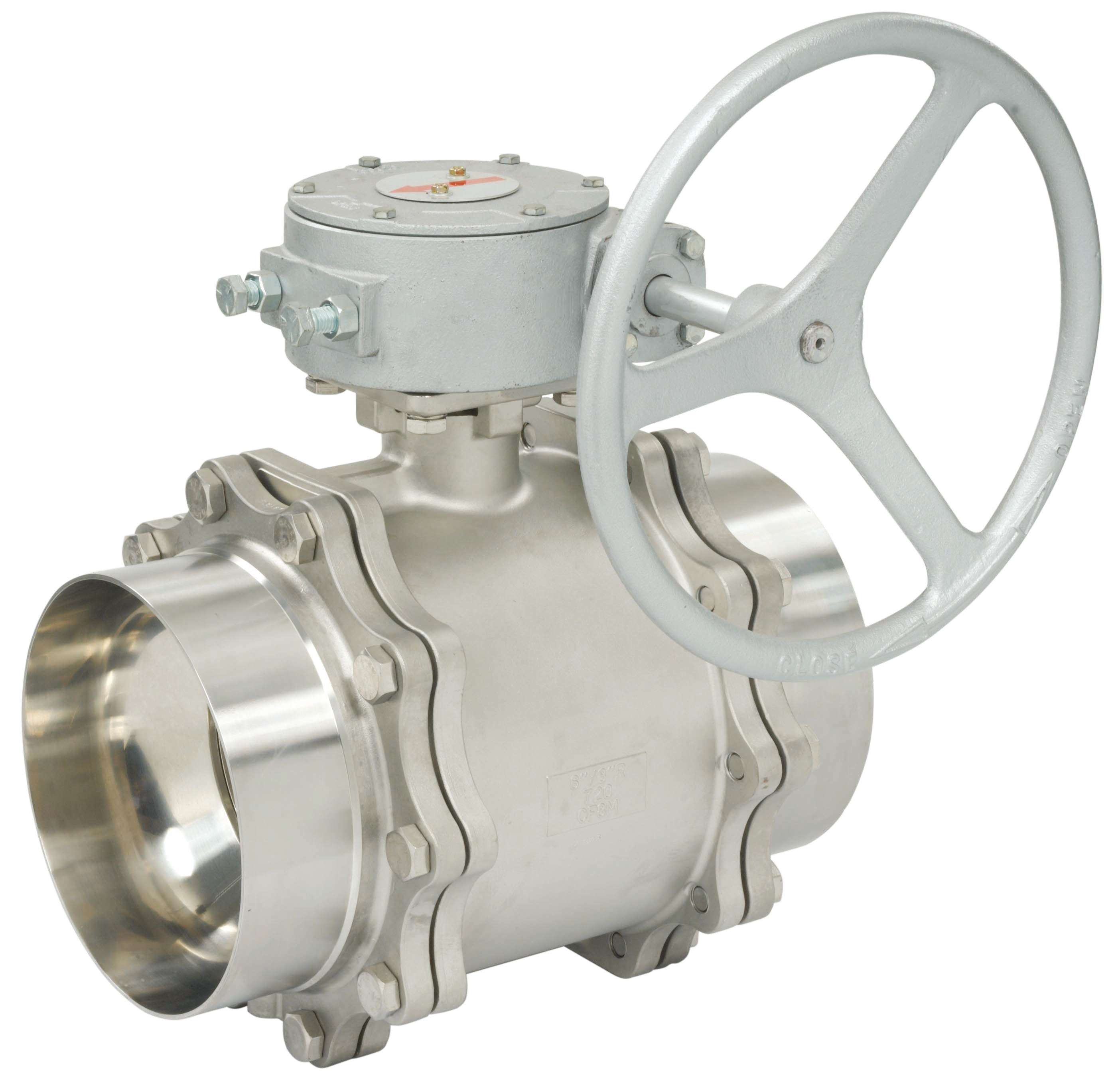

3PC HIGH PURITY CLEAN BALL VALVE
IT-P306
Tube:
- Size: 1/2”~4” (DN15~DN100)
- Body working pressure: 1000psi/ PN63
Pipe:
- Size: 1/2”~4” (DN15~DN100)
- Body working pressure: 1000psi/ PN63
Key Features
- Blow-out proof stem
- Bulit-in ISO 5211 Direct Mounting pad for easy automation
- Straight true port for uninterrupted flow media thru the valve
- Full port for tubing butt-weld
- Bosses for purge connections are built into body and cap for SIP/CIP operations
- All wetted parts are polished to 180 grit RMS 0.51 to 0.64 micron
- Swing-out 3pc design for easy field maintenance
- All extend weld ends in SS316L material allows orbital welding in place
- High purity cleaning oil free and packing
- Viton O-Ring on stem gives extra support and assurance of tightness
- Test pressure:
Seat(air): 80PSI
Shell(hydrostatic): 1500PSI
